STM Cylindrical Grinding Machine EGA-2550

VL / VD 510

Table(LxW)(mm)

650x410

Travel(XxYxZ)(mm)

550x410x480

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 8000 RPM 10000/12000/15000 RPM (optional)

DL2114

Table(LxW)(mm)

2000x1200

Travel(XxYxZ)(mm)

2100x1400x800

Spindle

BT 50 - 6000 / ZF Germany

DL2619

Table(LxW)(mm)

2500x1500

Travel(XxYxZ)(mm)

2600x1900x900

Spindle

BT 50 - 6000 / ZF Germany 15/18.5 (18.5/22 Opt.)

VL / VD 610

Table(LxW)(mm)

800x450

Travel(XxYxZ)(mm)

640x450x500

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 8000 RPM 10000/12000/15000 RPM (optional)

DL3119

Table(LxW)(mm)

3000x1500

Travel(XxYxZ)(mm)

3100x1900x900

Spindle

BT 50 - 6000 / ZF Germany 15/18.5 (18.5/22 Opt.)

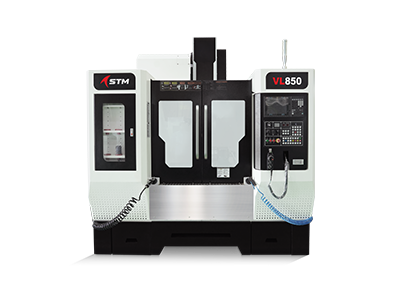

VL / VD 850

Table(LxW)(mm)

1000x500

Travel(XxYxZ)(mm)

850x510x510

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 8000 RPM 10000/12000/15000 RPM (optional)

VL / VD 1000

Table(LxW)(mm)

1100x510

Travel(XxYxZ)(mm)

1000x510x510

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 8000 RPM 10000/12000/15000 RPM (optional)

DL3225

Table(LxW)(mm)

3000x2000

Travel(XxYxZ)(mm)

3200x2500x1000

Spindle

BT 50 - 6000 / ZF Germany 15/18.5 (18.5/22 Opt.)

VL / VD 1050

Table(LxW)(mm)

1200x600

Travel(XxYxZ)(mm)

1100x650x610

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional) Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional) Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)

DL4225

Table(LxW)(mm)

4000x2000

Travel(XxYxZ)(mm)

4200x2650x1000

Spindle

BT 50 - 6000 / ZF Germany 18.5/22 (22/26 Opt.)

VL / VD 1300

Table(LxW)(mm)

1450x650

Travel(XxYxZ)(mm)

1300x700x700

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional) Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional) Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)

DL3230

Table(LxW)(mm)

3000x2200

Travel(XxYxZ)(mm)

3200x3150x1000

Spindle

BT 50 - 6000 / ZF Germany 22/26

VL / VD 1600

Table(LxW)(mm)

1800x800

Travel(XxYxZ)(mm)

1600x800x750

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional) Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional) Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)

DL4230

Table(LxW)(mm)

4000x2200

Travel(XxYxZ)(mm)

4200x3150x1000

Spindle

BT 50 - 6000 / ZF Germany 22/26

VL / VD 2090

Table(LxW)(mm)

2200x900

Travel(XxYxZ)(mm)

2000x900x850

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional) Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional) Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)

VG 610

Table(LxW)(mm)

800 x 450

Travel(XxYxZ)(mm)

640x450x500

Spindle

Belt/Direct BBT40 8000 rpm (Opt: 10000/12000rpm)

VG 850

Table(LxW)(mm)

1000 x 500

Travel(XxYxZ)(mm)

850x510x510

Spindle

Belt/Direct BBT40 8000 rpm (Opt: 10000/12000rpm)

VG 1050

Table(LxW)(mm)

1200 x 600

Travel(XxYxZ)(mm)

1050x650x610

Spindle

Belt/Direct BBT40 8000 rpm (Opt: 10000/12000rpm)

VFX400

Travel(XxYxZ)(mm)

600x(520 F 220 - R300)x500

C Axis Rotation

360⁰

A Axis Rotation

30 / -110⁰

VD510

Table(LxW)(mm)

650 x 400

Travel(XxYxZ)(mm)

510x400x330

Spindle

Direct Drive Spindle BT30 - 10000 RPM (standard) 12000-20000 RPM (optional)

EGP-2020

Swivel Over Table(mm)

Ø210

Distance Between Center(mm)

200

Max. Grinding Diameter (mm)

Ø200

VR850

Pallet Size(LxW)(mm)

500 x 850

Travel(XxYxZ)(mm)

850x510x510

Spindle

Belt Drive Spindle (standard) BBT40 - 8000 RPM 10000/12000 RPM (optional) Direct Drive Spindle (optional) BBT40 - 10000 RPM 12000/15000 RPM (optional)

EGP-2520

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

200

Max. Grinding Diameter (mm)

Ø230

EGP-2550

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

500

Max. Grinding Diameter (mm)

Ø230

EGP-2575

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

750

Max. Grinding Diameter (mm)

Ø230

EGP-25100

Swivel Over Table(mm)

Ø250

Swivel Over Table(mm)

1000

Max. Grinding Diameter (mm)

Ø230

EGP-3260

Swivel Over Table(mm)

Ø320

Swivel Over Table(mm)

600

Max. Grinding Diameter (mm)

Ø300

EGP-32100

Swivel Over Table(mm)

Ø320

Swivel Over Table(mm)

1000

Max. Grinding Diameter (mm)

Ø300

EGP-32150

Swivel Over Table(mm)

Ø320

Distance Between Center(mm)

1500

Max. Grinding Diameter (mm)

Ø300

EGA-2550

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

500

Max. Grinding Diameter (mm)

Ø230

EGA-2575

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

750

Max. Grinding Diameter (mm)

Ø230

EGA-25100

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

1000

Max. Grinding Diameter (mm)

Ø230

EGA-3260

Swivel Over Table(mm)

Ø320

Distance Between Center(mm)

600

Max. Grinding Diameter (mm)

Ø300

EGA-32100

Swivel Over Table(mm)

Ø320

Distance Between Center(mm)

1000

Max. Grinding Diameter (mm)

Ø300

EGA-32150

Swivel Over Table(mm)

Ø320

Distance Between Center(mm)

1500

Max. Grinding Diameter (mm)

Ø300

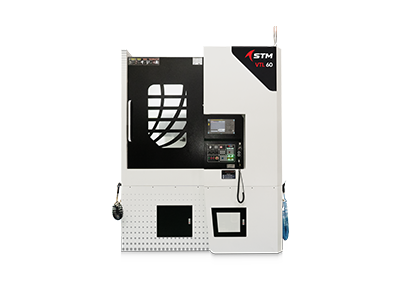

VTL60

Max. Turning Diameter(mm)

⌀700/L 150

X/Z Travel

X -40/+350 Z -770

Turret Type

Hydraulic

VTL80

Max. Turning Diameter(mm)

⌀850/L 150

X/Z Travel

X -40/+430 Z -870

Turret Type

Hydraulic

VTL100

Max. Turning Diameter(mm)

⌀110/L 150

X/Z Travel

X -40/+530 Z -920

Turret Type

Hydraulic

Description

  • The EGA Series is designed to achieve high precision, efficiency, and ease of operation.
  • They find suitability across various industries, including automotive, medical instruments, tooling, job shops, and mold industries.
  • Work Head: The work spindle, equipped with NN bearings, provides heavy-duty load capacity, optimal rotation accuracy, and high rigidity.
  • The servo motor drive maintains consistent speed and torque during grinding operations.
  • A positive purge system keeps grinding swarf and coolant out of the work head, ensuring a long lifespan.
  • Rigid Machine Base: The machine base is designed to ensure rigidity, fully supporting the table on both ends.
  • It consists of a heavily ribbed box-type base made of Meehanite casting, offering excellent rigidity and maintaining machine stability.
  • Wheel Head Spindle Bearing Options: Standard The contact bearing type spindle is easy to maintain, environmentally friendly, and minimizes thermal growth issues.
  • Tailstock: Equipped with a coolant nozzle on the top for cooling the center tip, the tailstock features an air floating device that facilitates smoother movement and table protection.
  • Optional tailstock quill travel of 75 mm aids in easy workpiece loading/unloading.
  • The oil-bathed quill enables smooth movement, and the optional taper adjustment feature makes it easy to correct taper errors.
  • X-Axis Guideways: The hand-scraped Double V guideways offer maximum support to the wheel head, resulting in greater stability and grinding capacity.
  • This design ensures superior accuracy and extends the machine's lifespan.

Specification

EGA-2550
Unit
Values

Swivel Over Table
Mm
Ø250
Distance Between Center
500
Max. Grinding Diameter
Mm
Ø230
Max. Grinding Length - Dresser On Workhead Side
Mm
350
Max. Grinding Length - Dresser On Tailstock Side(Opt)
-
500
Max. Load Held Between Center
Kg
80
Center Distance Between Spindle And Slide Table
Mm
130

Grinding Wheel Infeed Angle
Deg
30°
Diameter X Width X Bore
Mm
Ø510 X 50 X Ø127
Motor Rated Power / Max. Torque
KW/Nm
3.75/13
Wheel Speed
Rpm
1650
Spindle Type
-
-
Wheel Head Angle
Deg
-

Max. Manual Swiveling Angle
Deg
90
Spindle Speed (infinite Variable)
Rpm
10~600
Motor Rated Power / Max. Torque
KW
0.75
Center Taper
-
MT3 (Opt. MT4)
Center Working
-
Fixed Or Live
Diameter Of Bore
Mm
Ø20

Tailstock Quill Travel
Mm
25
Center Taper
-
MT3 (Opt. MT4)
Micro-taper Adjustment
Mm
-

Travel
Mm
200
Max. Rapid Feedrate
M/min
10
Heidenhain Linear Scale Resolution
µm
0.05
Min.Increment
Mm
0.0001
Servo Motor Rated Power
KW
1.2(F) / 1.5(M)
Guideway
-

Travel
-
750
Swiveling Angle
Deg
±7
Max. Rapid Feedrate
M/min
10
Min. Increment
Mm
0.0001
Servo Motor Rated Power
KW
1.2(F) / 1.5(M)
Guideway
-
-

Hydraulic Pump
KW
0.38
Coolant Pump
KW
0.2
Hydrodynamic Grinding Wheel Spindle Lubrication Pump
KW
0.2
Guideway Lubrication Pump
KW
0.2

Gross Weight
Kg
3500
Net Weight
Kg
-
Measurement / Machine Dimension
Mm
3170 X 2500 X 2050
