Vertical Turning Lathe VTL80

VL/VD 510

Table(LxW)(mm)

650x410

Travel(XxYxZ)(mm)

550x410x480

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 8000 RPM 10000/12000/15000 RPM (optional)

DL2114

Table(LxW)(mm)

2000x1200

Travel(XxYxZ)(mm)

2100x1400x800

Spindle

BT 50 - 6000 / ZF Germany

DL2619

Table(LxW)(mm)

2500x1500

Travel(XxYxZ)(mm)

2600x1900x900

Spindle

BT 50 - 6000 / ZF Germany 15/18.5 (18.5/22 Opt.)

VL/VD 610

Table(LxW)(mm)

800x450

Travel(XxYxZ)(mm)

640x450x500

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 8000 RPM 10000/12000/15000 RPM (optional)

DL3119

Table(LxW)(mm)

3000x1500

Travel(XxYxZ)(mm)

3100x1900x900

Spindle

BT 50 - 6000 / ZF Germany 15/18.5 (18.5/22 Opt.)

VL/VD 850

Table(LxW)(mm)

1000x500

Travel(XxYxZ)(mm)

850x510x510

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 8000 RPM 10000/12000/15000 RPM (optional)

VL/VD 1000

Table(LxW)(mm)

1100x510

Travel(XxYxZ)(mm)

1000x510x510

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 8000 RPM 10000/12000/15000 RPM (optional)

DL3225

Table(LxW)(mm)

3000x2000

Travel(XxYxZ)(mm)

3200x2500x1000

Spindle

BT 50 - 6000 / ZF Germany 15/18.5 (18.5/22 Opt.)

VL/VD 1050

Table(LxW)(mm)

1200x600

Travel(XxYxZ)(mm)

1100x650x610

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional) Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional) Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)

DL4225

Table(LxW)(mm)

4000x2000

Travel(XxYxZ)(mm)

4200x2650x1000

Spindle

BT 50 - 6000 / ZF Germany 18.5/22 (22/26 Opt.)

VL/VD 1300

Table(LxW)(mm)

1450x650

Travel(XxYxZ)(mm)

1300x700x700

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional) Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional) Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)

DL3230

Table(LxW)(mm)

3000x2200

Travel(XxYxZ)(mm)

3200x3150x1000

Spindle

BT 50 - 6000 / ZF Germany 22/26

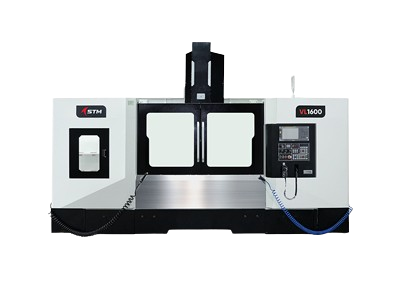

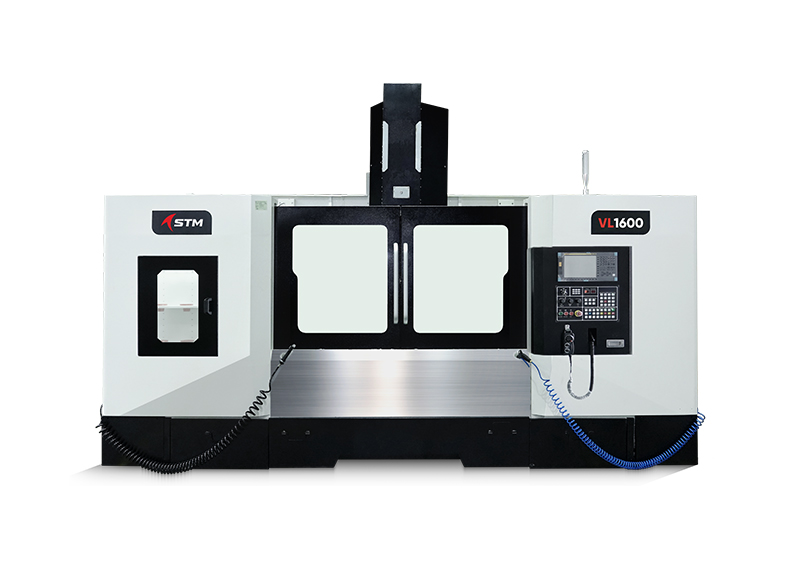

VL/VD 1600

Table(LxW)(mm)

1800x800

Travel(XxYxZ)(mm)

1600x800x750

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional) Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional) Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)

DL4230

Table(LxW)(mm)

4000x2200

Travel(XxYxZ)(mm)

4200x3150x1000

Spindle

BT 50 - 6000 / ZF Germany 22/26

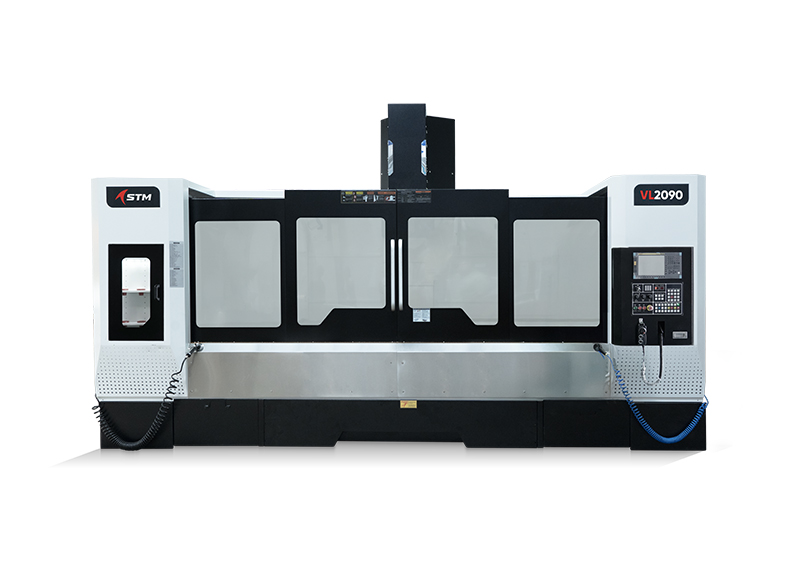

VL/VD 2090

Table(LxW)(mm)

2200x900

Travel(XxYxZ)(mm)

2000x900x850

Spindle

Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional) Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional) Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional) Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)

VG 610

Table(LxW)(mm)

800 x 450

Travel(XxYxZ)(mm)

640x450x500

Spindle

Belt/Direct BBT40 8000 rpm (Opt: 10000/12000rpm)

VG 850

Table(LxW)(mm)

1000 x 500

Travel(XxYxZ)(mm)

850x510x510

Spindle

Belt/Direct BBT40 8000 rpm (Opt: 10000/12000rpm)

VG 1050

Table(LxW)(mm)

1200 x 600

Travel(XxYxZ)(mm)

1050x650x610

Spindle

Belt/Direct BBT40 8000 rpm (Opt: 10000/12000rpm)

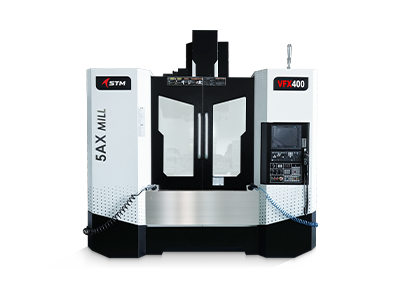

VFX400

Travel(XxYxZ)(mm)

600x(520 F 220 - R300)x500

C Axis Rotation

360⁰

A Axis Rotation

30 / -110⁰

VD510

Table(LxW)(mm)

650 x 400

Travel(XxYxZ)(mm)

510x400x330

Spindle

Direct Drive Spindle BT30 - 10000 RPM (standard) 12000-20000 RPM (optional)

EGP - 2020

Swivel Over Table(mm)

Ø210

Distance Between Center(mm)

200

Max. Grinding Diameter (mm)

Ø200

VR850

Pallet Size(LxW)(mm)

500 x 850

Travel(XxYxZ)(mm)

850x510x510

Spindle

Belt Drive Spindle (standard) BBT40 - 8000 RPM 10000/12000 RPM (optional) Direct Drive Spindle (optional) BBT40 - 10000 RPM 12000/15000 RPM (optional)

EGP-2520

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

200

Max. Grinding Diameter (mm)

Ø230

EGP-2550

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

500

Max. Grinding Diameter (mm)

Ø230

EGP-2575

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

750

Max. Grinding Diameter (mm)

Ø230

EGP-25100

Swivel Over Table(mm)

Ø250

Swivel Over Table(mm)

1000

Max. Grinding Diameter (mm)

Ø230

EGP-3260

Swivel Over Table(mm)

Ø320

Swivel Over Table(mm)

600

Max. Grinding Diameter (mm)

Ø300

EGP-32100

Swivel Over Table(mm)

Ø320

Swivel Over Table(mm)

1000

Max. Grinding Diameter (mm)

Ø300

EGP-32150

Swivel Over Table(mm)

Ø320

Distance Between Center(mm)

1500

Max. Grinding Diameter (mm)

Ø300

EGA-2550

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

500

Max. Grinding Diameter (mm)

Ø230

EGA-2575

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

750

Max. Grinding Diameter (mm)

Ø230

EGA-25100

Swivel Over Table(mm)

Ø250

Distance Between Center(mm)

1000

Max. Grinding Diameter (mm)

Ø230

EGA-3260

Swivel Over Table(mm)

Ø320

Distance Between Center(mm)

600

Max. Grinding Diameter (mm)

Ø300

EGA-32100

Swivel Over Table(mm)

Ø320

Distance Between Center(mm)

1000

Max. Grinding Diameter (mm)

Ø300

EGA-32150

Swivel Over Table(mm)

Ø320

Distance Between Center(mm)

1500

Max. Grinding Diameter (mm)

Ø300

VTL60

Max. Turning Diameter(mm)

⌀700/L 150

X/Z Travel

X -40/+350 Z -770

Turret Type

Hydraulic

VTL80

Max. Turning Diameter(mm)

⌀850/L 150

X/Z Travel

X -40/+430 Z -870

Turret Type

Hydraulic

VTL100

Max. Turning Diameter(mm)

⌀110/L 150

X/Z Travel

X -40/+530 Z -920

Turret Type

Hydraulic

Description

  • Our Vertical Turning Lathe is engineered for exceptional performance in vertical turning applications, specifically designed to handle the most demanding heavy-duty metal cutting tasks with unparalleled precision and reliability Incredible Cutting Ability: Engineered with advanced technology to ensure precise and efficient cutting, making it ideal for the most challenging metalworking tasks.
  • Heavy-Duty Performance: Designed for rigorous applications, our lathe can handle substantial workloads without compromising on accuracy.
  • Rigid Cutting Capability: Perfect for industries requiring high levels of precision and consistency, our machine guarantees stability and performance even under the toughest conditions.
  • Built to withstand heavy usage, ensuring long-term reliability and performance.
  • Achieve perfect cuts every time with our advanced cutting technology.
  • Suitable for a wide range of industrial applications, making it a valuable addition to any manufacturing setup.
  • Increase your operational efficiency with a machine designed for high-speed, high-precision cutting.

Specification

VTL80
Unit
Values

Max. Swing Diameter
Mm
1000
Max. Turning Diameter
Mm
⌀850/L 150
Standard Turning Diameter
Mm
800
Max. Turning Height
Mm
850
Chuck Size
Mm
400(530)

X-Axis
-
-40/+430
Z-Axis
-
870

RPM
-
2000

Type
-
Hydraulic
No.of Stations(Nos)
-
12(10)
Tool Shank Size
Mm
32

Machine Weight
Kg
10000
Power Supply
KVA
40
